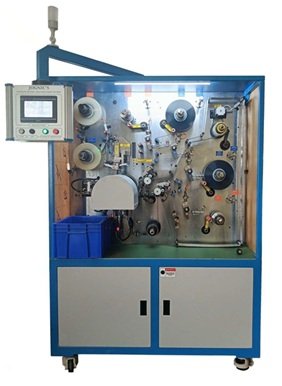

Automatic Mpp Capacitor Winding Machine

Model AWM150

Design to wind single element of 150mm diameter

Provision for 5 hex & 13 hex core

Dual burn off facility for MPP

Automatic Winding Capacitor Machine

Model AWM125

Single mode of winding producing capacitor

having diameter up to 125mm

37.5 to 150mm width film in 5 hex core

50 to 150mm width film in 13 hex core

Automatic Capacitor Winding Machine

Model AWM214

Split pin type mandrels

Dual mode winding for 4.5 to 14mm

Single mode winding for 28mm

Automatic Mpp Capacitor Winding Machine

Model AWM21

Single mode of winding for 100mm width element

Dual mode of winding for 30, 37.5, 50 & 75mm  width element

Winding diameter upto 60mm

Automatic Split Pin Capacitor Winding Machine

Model FFWM30

Single element film/foil winding from 0.1 to 4mfd

14-30mm film/foil width, winding dia upto 30mm

Winding for capacitance

Automatic Capacitor Winding Machine

Model 4422A

Quadruple mode of winding for 30, 37.5, &

50mm width element

Dual mode of winding for 75 & 100mm width element

Automatic Capacitor Winding Machine

Model AWM150D

3 position index arrangement, facilitates simultaneous

& continuous operation

Hex core mandrels are driven by AC servo motor

Single mode of winding for upto 150mm width element
